Big Tex 70PI
Tandem Axle Pipe Utility Trailer
When it comes to hauling light-duty equipment on the farm or ranch, there’s nothing more versatile than the 70PI Tandem Axle Pipe Top Utility Trailer. Coming standard with an extra wide 83’’ wide deck, this trailer is built to transport small equipment and other loads for agricultural applications. It’s sturdy. It’s durable. It’s dependable. It’s everything you need in a cost-effective—yet adaptable—utility trailer that gets the job done from sunrise till sunset.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 14' | 7,000# | 1,780# | 5,220# |
| 83" x 16' | 7,000# | 1,860# | 5,140# |
| 83" x 18' | 7,000# | 1,940# | 5,060# |
| 83" x 20' | 7,000# | 2,020# | 4,980# |
Key Features
YOUR HAUL, SECURED
STANDARD 4' TALL 3-WAY RAMP GATE
STURDY 2" X 2" PIPE TOP RAIL
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
4" x 3" x 1/4" Angle Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
9" x 72" Rolled Formed w/ Back Fenders
17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
1/8” Diamond Plate Steel Floor (Per Square Foot)
2' High Sides (Open, Total Height with Top Rail)
3' High Sides (Open, Total Height with Top Rail)
4' High Sides (Open, Total Height with Top Rail)
Car Hauler Style (No Side Rails)
Enclose Sides w/ Expanded Metal (Per Square Foot)
Enclose Sides w/ Sheet Metal (Per Square Foot)
CARGO CONTROL
Standard
Option
(4) Tie Down Loops Inside Bed
Additional Tie Loops
TIRE/WHEEL
Standard
Option
ST205/75 R-15 Load Range C
5 Bolt
Spare Tire Mount
Spare Tire (ST205/75R-15 LR-C)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 30 w/Safety Latch Hook (2 each)
Complete Break-A-Way System w/Charger
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
8,000# Drop-Leg Jack
RAMPS
Standard
Option
4' Tall 3-Way Ramp Gate w/ Coil Spring Assist
4' Slide-In Angle Ramps
4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
4' Tall Rear Ramp Gate w/ Coil Spring Assist
5' Tall Rear Ramp Gate w/ Coil Spring Assist
5' Stand Up Ramps
4' Heavy Duty Integrated Ramp Gate w/ Coil Spring
5' Heavy Duty Integrated Ramp Gate w/ Coil Spring
AXLES
Standard
Option
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
BRAKES
Standard
Option
Electric Brake on Front Axle
Electric Brakes on 2nd Axle
COUPLERS
Standard
Option
Adjustable, 7,000#, 2” Forged Coupler
2-5/16" Stamped Coupler
2-5/16" Forged Coupler
360° view
Not available for this model.

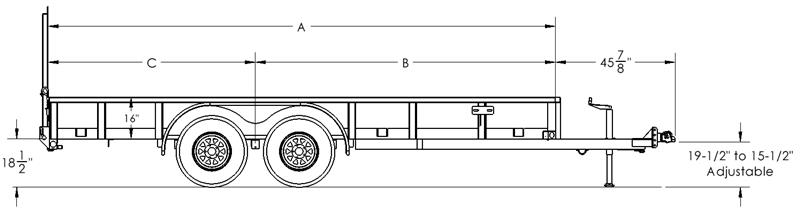

Measurements
