Big Tex 60PI
Tandem Axle Pipe Top Utility Trailer
Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. It’s built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 77" x 12' | 6,000# | 1,265# | 4,735# |
| 77" x 14' | 6,000# | 1,400# | 4,600# |
| 77" x 16' | 6,000# | 1,535# | 4,465# |
Key Features
2,000 LBS SET BACK JACK
OPTIONAL REAR RAMP GATE
STURDY 2" X 2" PIPE TOP RAIL
EFFORTLESS MAINTENANCE
Equipment
BODY
Standard
Option
3" x 2" x 3/16" Angle Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
9" x 72" Rolled Formed w/ Back Fenders
17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
1/8” Diamond Plate Steel Floor (Per Square Foot)
2' High Sides (Open, Total Height with Top Rail)
3' High Sides (Open, Total Height with Top Rail)
4' High Sides (Open, Total Height with Top Rail)
Car Hauler Style (No Side Rails)
Enclose Sides w/ Expanded Metal (Per Square Foot)
Enclose Sides w/ Sheet Metal (Per Square Foot)
CARGO CONTROL
Standard
Option
(4) Tie Down Loops Inside Bed
Additional Tie Loops
TIRE/WHEEL
Standard
Option
ST205/75 R-15 Load Range C
5 Bolt
Spare Tire Mount
Spare Tire (ST205/75R-15 LR-C)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 30 w/Safety Latch Hook (2 each)
Complete Break-A-Way System w/Charger
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
RAMPS
Standard
Option
4' Slide-In Angle Ramps
4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
4' Tall Rear Ramp Gate w/ Coil Spring Assist
5' Tall Rear Ramp Gate w/ Coil Spring Assist
AXLES
Standard
Option
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Spring w/ Equalizer
BRAKES
Standard
Option
Electric Brake on Front Axle
Electric Brakes on 2nd Axle
COUPLERS
Standard
Option
2" A-Frame
2" Forged Coupler
2-5/16” Forged Coupler
2-5/16” Stamped Coupler
360° view
Not available for this model.

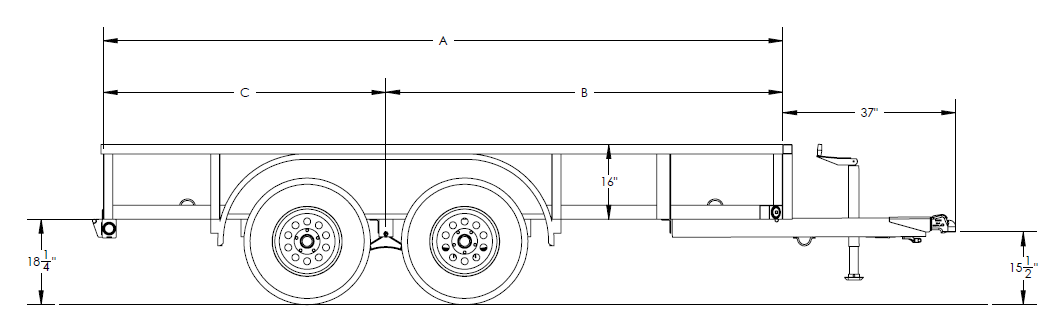

Measurements
