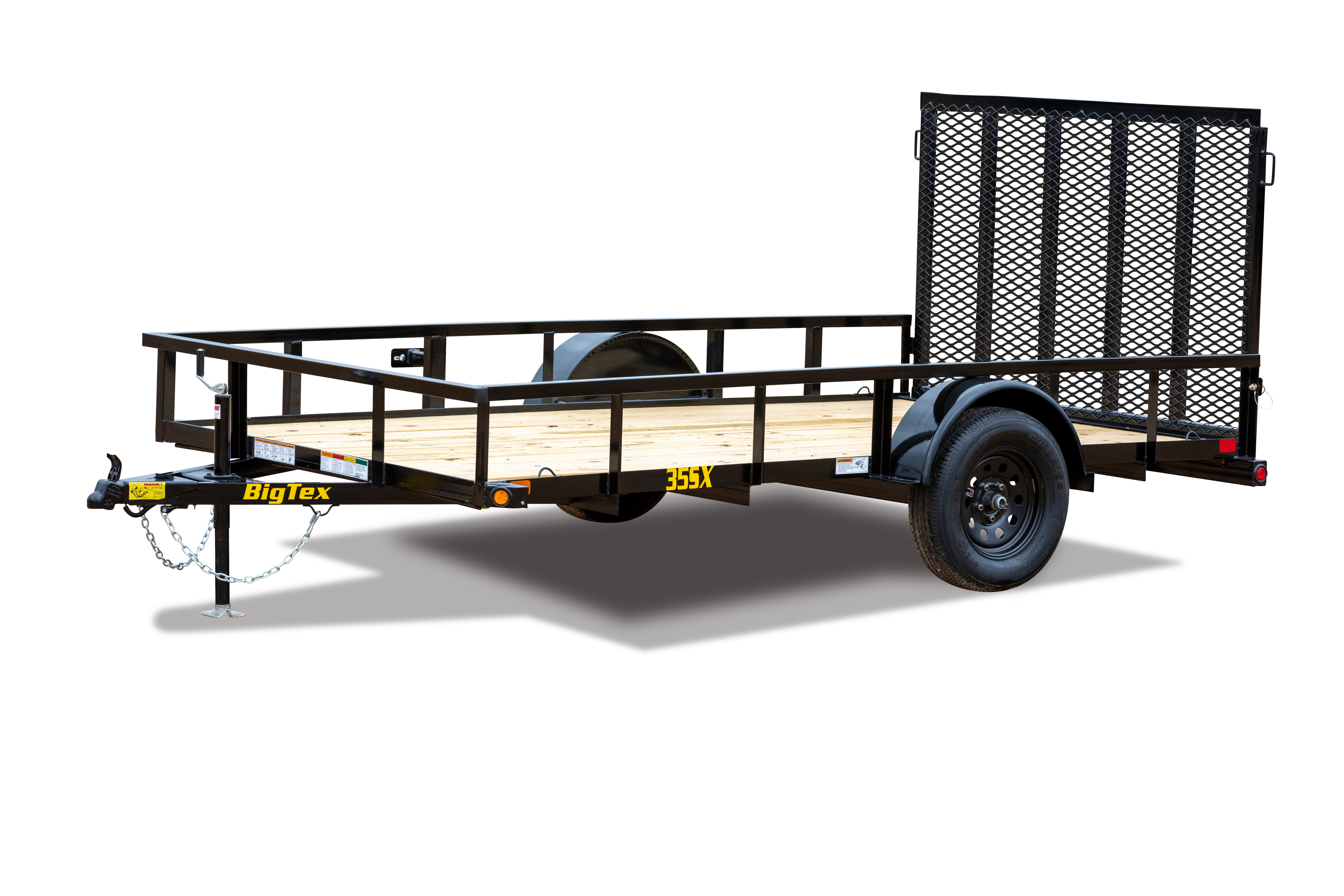

Big Tex 35SX
Single Axle Utility Trailer
The Big Tex 35SX Single Axle Utility Trailer is designed to perform both at home and on the job, offering versatility, reliability, and convenience for any task. Whether you’re transporting equipment, landscaping materials, or even side-by-side vehicles, this trailer is built for homeowners and outdoor enthusiasts in need of a tough, dependable solution that will last for years.
| Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
|---|---|---|---|
| 83" x 12' | 2,995 | 1,003 | 1,992 |
| 83" x 14' | 2,995 | 1,093 | 1,902 |
Key Features
2,000 LBS SET BACK JACK
STANDARD 4' TALL 3-WAY RAMP GATE
SQUARE TUBING TOP RAIL
QUICK LUBRICATING AXLE WITH BRAKE FLANGES
Equipment
BODY
Standard
Option
3" x 2" x 3/16" Angle Frame
3” x 2” x 3/16” Angle Crossmembers
Treated Pine Floor
Black Paint
17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail
2' High Sides (Open, Total Height with Top Rail)
3' High Sides (Open, Total Height with Top Rail)
4' High Sides (Open, Total Height with Top Rail)
Car Hauler Style (No Side Rails)
Enclosed Sides w/ Expanded Metal (Per Square Foot)
Enclosed Sides w/ Sheet Metal (Per Square Foot)
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
CARGO CONTROL
Standard
Option
(4) Tie Down Loops Inside Bed
Additional Stake Pockets (Each)
TIRE/WHEEL
Standard
Option
ST205/75 R-15 Load Range C
5 Bolt
Spare Tire Mount
Spare Tire (ST205/75R-15 LR-C)
POWER
Standard
Option
4-Way Flat w/ Loom
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
1/4” Grd. 30 w/Safety Latch Hook (2 each)
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
RAMPS
Standard
Option
4' Tall 3-Way Ramp Gate w/ Coil Spring Assist
4' Tall Rear Ramp Gate w/ Coil Spring Assist
5' Tall Rear Ramp Gate w/ Coil Spring Assist
4' Slide-In Angle Ramps
4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
AXLES
Standard
Option
3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Slipper Spring
BRAKES
Standard
Option
Brake Flanges for Easy Brake Addition
Electric Brakes w/ Complete Break-Away Kit
COUPLERS
Standard
Option
2" A-Frame
2-5/16” Forged Coupler
360° view
Not available for this model.

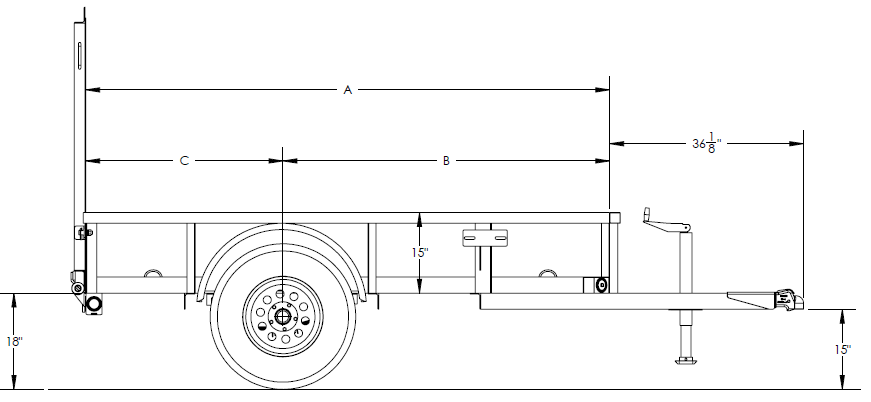

Measurements
