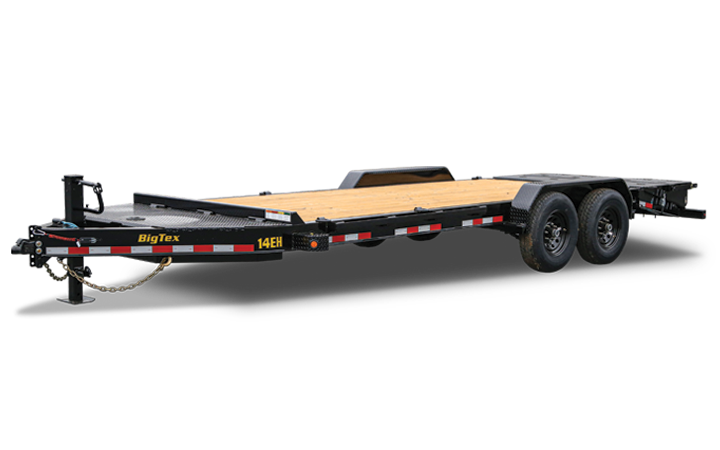

Big Tex 14EH
Heavy Duty Tandem Axle Seamless I-Beam Equipment Trailer
Part of the all-new X-Series, the 14EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 14EH features a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 14EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
Trailer Size | G.V.W.R Rating | Trailer Weight | Trailer Payload |
---|---|---|---|
83" x 13' + 3' | 15,400# | 2,640# | 12,540# |
83" x 15' + 3' | 15,400# | 2,840# | 3,020# |
83" x 17' + 3' | 15,400# | 3,040# | 12,250# |
83" x 19' + 3' | 15,400# | 3,240# | 12,100# |
83" x 21' + 3' | 15,400# | 3,440 | 11,960# |
83" x 17' + 3' GN | 15,900# | 3,322# | 12,370# |
83" x 19' + 3' GN | 15,900# | 3,522# | 12,210# |
83" x 21' + 3' GN | 15,900# | 3,722# | 12,030# |
Key Features
MEGA-SIZED TOOLBOX
ADAPTABLE LOAD SECURITY
OPTIONAL SELF-STABILIZING MEGA RAMPS
CUSTOMIZABLE RAMP SOLUTIONS
Equipment
BODY
Standard
Option
8" I-Beam
3" Channel on 16" Centers
3/16" Fabricated Front Stop Rail
Treated Pine Floor
9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)
40” Cleated Dovetail
Rub Rail Along Both Sides
Convenient Side-Step to Access Deck
Black Paint
CARGO CONTROL
Standard
Option
Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only)
(6) 5/8" D-Rings
Stake Pockets Along Both Sides (Quantity Varies by Length)
Lockable Toolbox Between Risers on Gooseneck Model
TIRE/WHEEL
Standard
Option
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade (ST235/80 R-16 LR-G)
8-Lug
Front Spare Tire Mount
Spare Tire & Wheel (ST235/80 R-16 LR-E)
POWER
Standard
Option
7-Way RV
Sealed, Modular Cold-Weather Wiring Harness
SAFETY
Standard
Option
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Complete Breakaway System w/ Zip Breakaway Cable
LIGHTS
Standard
Option
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
JACKS
Standard
Option
12,000# Drop-Leg Jack (Side Wind)
RAMP
Standard
Option
12,000# Drop-Leg Jack (Side Wind)
36" Wide Mega Ramps (D3 Models Only)
Super-Wide Ramps (60" Tall x 30" Wide) w/ Blackwood Pro-Filled Dovetail
AXLES
Standard
Option
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Slipper Spring w/ Equalizer
BRAKES
Standard
Option
Forward Self-Adjusting Electric Brakes on All Hubs
COUPLERS
Standard
Option
Adjustable 2-5/16” Demco EZ Latch
Adjustable Pintle in Channel in Lieu of Coupler
Adjustable 2-5/16" Demco EZ Latch Gooseneck Coupler
